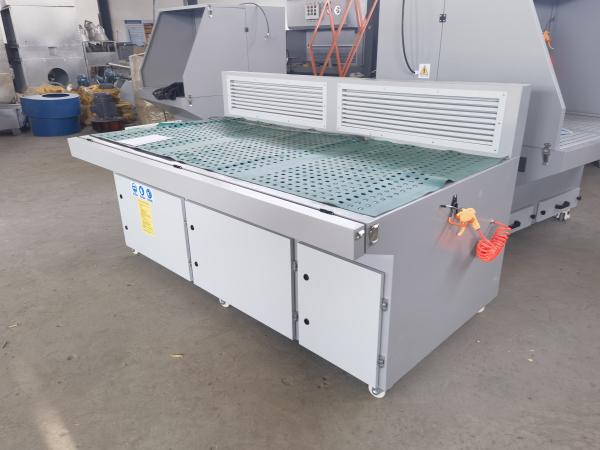

Professional Factory Dust Downdraft Table Sanding Polishing Dust Collection Table

Professional Factory Dust Downdraft Table Sanding Polishing Dust Collection Table

1. Working Principle

Step 1: Put the metal that needs to be polished onto the work surface.

Step 2: When polishing metal, the dust enters the deflector channel through the negative pressure generated by the fan via the suction openings on the side and below.

Step 3: Large particles of dust collide with the guide plate and fall into the dust collection drawer under the effect of gravity.

Step 4: The dust with fine particles enters the filtering chamber and is blocked on the surface by the filter cartridge. When the dust is continuously deposited on the surface of the filter element, it will be detached from it and fall into the dust collection drawer by pulse blowing.

Step 5: The purified air is discharged.

2. Parameter Description

Take QD-DM2000 model for example:

3. ​Maintenance Instructions

Equipment in the process of processing according to the workshop production equipment specifications, in order to ensure production safety and operational stability of the situation for each part and the system for a number of experiments before being put into use. The equipment itself has no wearing parts, no special attention in the use of the process. Each system has been installed with safety guarantee at the completion of the equipment. Consumables are supplied by us and replaced by the workshop operator after switching off the power.

Please observe the following when carrying out repairs and maintenance:

(1) When cleaning the machine casing, replacing parts or changing the working condition, the machine must be switched off and unplugged from the power supply.

(2) Avoid squeezing and dragging or any other way to damage the power cord. And regularly check whether the power cord is damaged, if there is any damage to the power cord, you should immediately stop using the machine and have it overhauled by a professional to replace the damaged power cord, etc.

(3) Storage of the machine: when the machine is not in use, it should be placed in a dry room to avoid sun and rain.

(4) The machine needs to clean the filter cartridge from time to time to prevent clogging and affect the effect of vacuuming.

(5) According to the cleanliness of the environment, replace the filter regularly (generally 3-6 months).

4. FAQ

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.

Q: What certificates do you have?
A:CE / ISO / SGS
